Key Digital® Multi-Function I/O Port to Contact Closure/Relay Converter

Compatible With

• KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers

Multi-function 3.5mm based Compass Control® Port – MPC35™

• Supports the following seven features:
• IR output
• IR Input
• RS232 bi-directional
• Voltage sensor
• Voltage trigger
• PCM audio sensor
• Composite Video sensor

Converts

• Any I/O Multifunction Compass® Control Port (MPC35™) to Contact Closure/Relay when set to 12V Output Voltage Trigger Mode

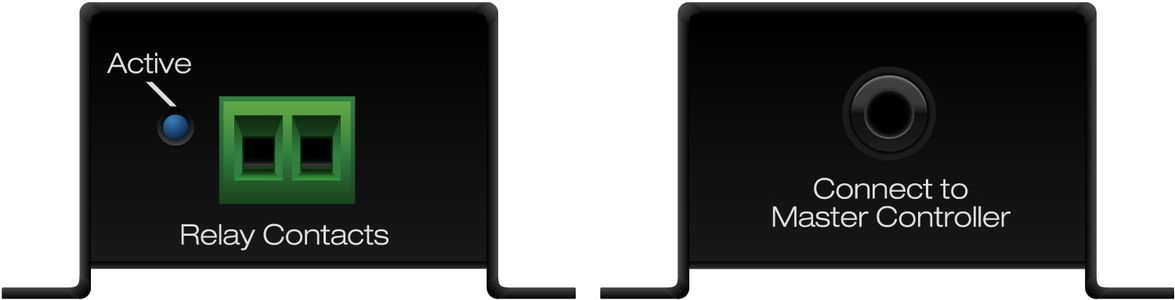

Contact Functionality

• Contact Normally Open, if 12V applied – Contact Closed.

3.5mm Mono Input Connection

• Use a male-to-male 3.5mm mono cable from KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers

Contact Closure Maximum Rating

• 250V/2A

Maximum Distances

• 3.5mm mono cable: 10 feet
• Contact Closure/Relay Output with one twisted pair of CAT5e/6 cable: 100 feet

Additional Specs

• One Contact Closure/Relay Output
• No external power required
