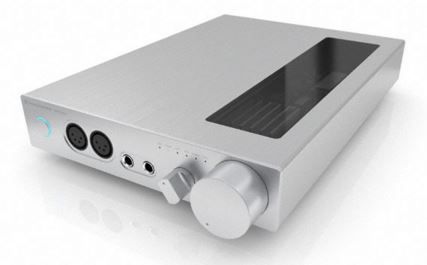

Sennheiser Digital Headphone Amplifier

Model #: HDVD 800

At a Glance

Sennheiser Digital Headphone Amplifier with symmetrical output and sockets for four sets of headphones

WarningProposition 65 Warning for California Residents
Sennheiser Digital Headphone Amplifier

Specifications

Power On Consumption (watts)9

Connections

USB Port1
Coaxial Digital Audio Inputs1
Optical Digital(Fiber Optic) Audio Inputs1

General Specs

Depth (in.)12.05
Height (in.)1.73
Width (in.)8.82
Analog Audio(RCA) Input2
Headset JackYes
Product Weight (lbs.)4.85

Sennheiser Digital Headphone Amplifier

Model #: HDVD 800
76479
Model #: HDVD 800
Sennheiser
$99,999.00

Call for Best Price

At a Glance

Sennheiser Digital Headphone Amplifier with symmetrical output and sockets for four sets of headphones

Get to know this product.

With Sennheiser’s HDVD 800, sound is perfect. The HDVD 800 is able to connect with digital sources and is equipped with a high-quality Burr-Brown digital/analog converter (DAC) that converts digital audio data into analog signals with a resolution of 24 bits and a sampling rate of up to 192 kHz. This enables the HDVD 800 to transmit the entire frequency spectrum of high-end audio sources without any loss of frequencies. In addition to the symmetrical inputs, the HDVD 800 also has an asymmetrical input socket; incoming signals are symmetrized before further processing takes place. Digital sources can be connected to the rear of the unit via an XLR (AES/EBU) input, optical and coaxial (S/PDIF) digital inputs or USB. All digital inputs accept signals up to 24 bit at 192 KHz*. Designed and manufactured in Germany, this high-end, solid-state amplifier harmonize perfectly and deliver an ultimate acoustic performance when paired with any of Sennheiser’s audiophile headphones.

    D/A transducer for all common formats up to 24 bit / 192 kHz

    D/A transducer can be used for CD and DVD players

    AES/BU, S/PDIF, USB inputs

    Symmetrical (XLR) and asymmetrical (RCA) analog inputs

    Symmetrical output

    Sockets for four sets of headphones (two of which symmetrical)

What's in the box?

    HDVD 800

    Safety guide

    Quick start guide

    CD containing the user manual and Windows driver

Technical Data

    Dimensions (W x H x D): approx. 216 mm x 55 mm x 324 mm

    Frequency response 0.3 Hz to 100 kHz (-3 dB)

    THD, total harmonic distortion < -110 dB (1 kHz / maximum gain)

    Weight 2.2 Kg

    Audio input Analogue input XLR-3 : Max. input voltage 20 dBV / Input impedance 10 kOhm

    Analogue input RCA: Max. input voltage (eff) 14 dBV / Input impedance 10 kOhm

    Digital SPDIF (RCA): Max. sampling frequency 192 kHz /AES3-compatible) / Max. resolution 24 bit

    Digital SPDIF (TosLink): Max. sampling frequency: 88,2 kHz (AES3-compatible) Max. resolution: 24 bit

    Digital AES/EBU (XLR-3): Max. sampling frequency: 192 kHz (AES3-compatible) / Max. resolution: 24 bit

    USB (USB-B) USB standard: USB 2.0 / USB 3.0 USB audio class: USB Audio 2.0

    Power consumption 9 W

    Input voltage range 100-240 V AC / 50-60 Hz

Specifications

General Specs

Depth (in.)12.05
Height (in.)1.73
Width (in.)8.82
Analog Audio(RCA) Input2
Headset JackYes
Product Weight (lbs.)4.85

Connections

USB Port:1
Coaxial Digital Audio Inputs:1
Optical Digital(Fiber Optic) Audio Inputs:1

Specifications

Power On Consumption (watts):9
