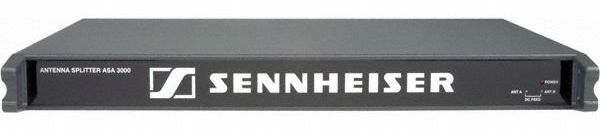

Sennheiser ASA 3000-US Antenna Splitter


Model #:

ASA 3000-US

Model #: ASA 3000-US
158451
Sennheiser
$99,999.00

At a Glance

Sennheiser ASA 3000-US Antenna Splitter with ability to be made narrowband and for up to 16 channelsRead More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Directional antenna with integrated AB3700 for for EM 3731/3732, EM 2000/2050 and EM 6000 receivers only.

Technical Data

  • Dimensions 19 '', 1U
  • Weight ~ 3 kg
  • Nominal impedance 50 Ω
  • RF frequency range 470 - 870 MHz
  • Antenna connector BNC
  • Mains frequency 50 - 60 Hz
  • Mains voltage 100 - 240 V
  • Remarks Booster Feed: 12 V, 200 mA
  • Transmission loss 0 dB

*Warning (for California residents only): Please note per Proposition 65 that this product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Every Consumer Products company is required to post the warning no matter if their products pose any harm. Sennheiser products are all RoHs compliant, yet we are by law required to post the Proposition 65 warning message anyway.

Useful Documents
Specifications

Dimensions

Weight (grams):3,000

Specifications

Impedance:50 Ohms
Frequency Range:470 - 870 MHz
