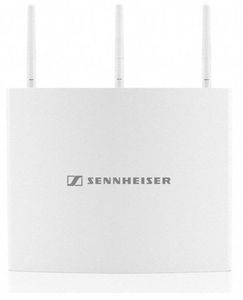

Sennheiser ADN-W AM-US Wireless Antenna Module

The ADN-W AM antenna module is designed to ensure reliable wireless bidirectional communication with the ADN-W D1 and C1 wireless conference units in both the 2.4 GHz and the 5 GHz frequency band.

The ADN-W AM antenna module is designed to ensure reliable wireless bidirectional communication with the ADN-W D1 and C1 wireless conference units in both the 2.4 GHz and the 5 GHz frequency band. The antenna module easily connects to the ADN CU1 central unit via the ADN bus cable. The ADN-W AM features a built-in 5/8“ mounting thread (with a 3/8“ thread insert) that allows easy mounting on walls or ceilings.

Features

• Automatic frequency selection mode
• Rugged metal housing
• Powered via ADN bus or NT 12-50C DC power supply
• AES 128-bit encryption

What's in the box?

• ADN-W antenna module
• SDC CBL RJ45-5 system cable (length: 5 m)
• Quick guide

Technical Data

• Dimensions Width: 226 mm, Length: 58 mm, Height: 181 mm
• Weight approx. 1660 g / 3.66lbs
• Power consumption 6 W
• Operating temperature 5° … +45° C
• RF output power 25 to 100 mW
• Power supply 12 to 15 VDC
• Antenna connector 3 rod antennas / omni-directional with R-SMA connector
• Frequency range 2.4 / 5.1 - 5.9 GHz
• Max. coverage area 30 m / 100ft radius
• Thread 5/8" and 3/8" insert
• Operating relative humidity 20 ... 95%
