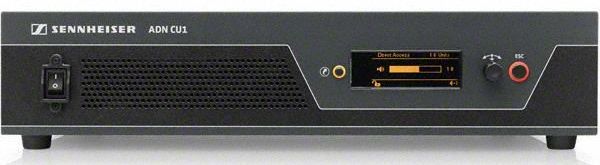

Sennheiser ADN CU1 Digital Discussion Central Unit

The digital discussion central unit ADN CU1 powers up to 40 (depending on cable length) and controls up to 400 (with ADN PS) connected delegate and chairperson units.

The digital discussion central unit ADN CU1 powers and controls up to 40 (depending on cable length) connected delegate and chairperson units. It offers full configuration in a quick and easy way over the menu display in several languages. It offers full configuration in a quick and easy way over the menu display in several languages. Alternatively, the integrated software package 'Conference Manager' can be used directly on the CU1 by connecting a screen, mouse and keyboard. The intuitive workflow of the conference manager allows a fluent monitoring and control of the conference. With its low-noise fan the central unit can be used directly in the meeting without disturbing it.

• ADN CU1 KIT
• ADN central unit for up to 40 conference mics , bundled with RMB2 rackmount kit

Features

• Supplies up to 40 and controls up to 400 discussion units
• Integrated PC with pre-installed control software
• Graphical user menu in 13 languages
• Open Media Control Protocol over Ethernet (compatible to Crestron and other brands)

What's in the box?

• ADN CU1 central unit
• DVD-ROM with Conference Manager software and manuals
• Quick guide
• Mains Cable EU / UK / US
• ADN Conference Manager
• RMB2 Rackmount Kit

Technical Data

• Dimensions: 417 x 100 x 345 mm
• Frequency response: 100 - 14000 Hz
• THD, total harmonic distortion: < 0.01% A-weighted at +6 dBV IN, OUT
• Weight: Approx. 6.5 kg
• Power consumption: 245 W
• Operating temperature: +5°C to +50°C
• Signal-to-noise ratio: > 80dB A-weighted at +11dBu
• Input voltage range: -18 dBu to +18dBu (XLR IN)
• Output voltage: 52.8 VDC (ADN Bus)
• Output level: Max. +10dBV
