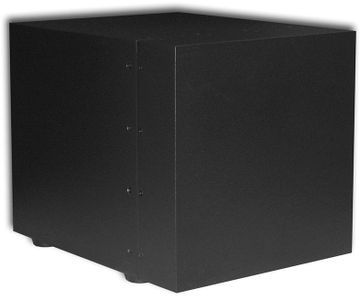

James Loudspeaker® EMB II Series 12" Studio Black In-Cabinet Subwoofer


Model #:

EMB12BP

Model #: EMB12BP
27756
James Loudspeaker
$99,999.00

At a Glance

Product Dimensions 13.5"h x 13.5"w x 16.75"d

The EMB12BP subwoofer has been tuned to perform all the way down to an impressive 20Hz! Because it is a high power handling passive subwoofer, we recommend pairing it with our M1000 class D amplifier which provides 1000 watts of clean power and features a full DSP digital processor.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

One of many available options in the EMB II Subwoofer series features a very contemporary cabinet design and a design that isn’t obtrusive. Built from solid aircraft grade aluminum and expertly finished to your color preference, the craftsmanship of this compact subwoofer exudes luxury and performance. The unique bandpass or “BP” design features a front “Acoustic Energy Director” which allows stealthy in-cabinet installation, venting out the toekick or cabinet side.

Internally, the EMB12BP utilizes our famous “Energy Multiplying Bandpass” technology to obtain high output and low distortion from a very compact enclosure. Inside, the cabinet features a specially designed 10” woofer and a pneumatically phase coupled passive radiator, both with aluminum cones and rubber surrounds. The EMB12BP subwoofer has been tuned to perform all the way down to an impressive 20Hz! Because it is a high power handling passive subwoofer, we recommend pairing it with our M1000 class D amplifier which provides 1000 watts of clean power and features a full DSP digital processor. You can power a total of one EMB12BP subwoofer with a single M1000 amplifier.

Specifications

  • Frequency Response: 20-150Hz +/-3dB
  • Sensitivity: 92dB 2.83V/1m
  • Recommended Power Range: 500 - 1000W
  • Woofer: (2) 12" Active/Passive
  • Enclosure: Aircraft Marine Grade Aluminum
  • Height: 13.5 in (342.90 mm)
  • Width: 13.5 in (342.90 mm)
  • Depth: 16.75 in (425.45 mm)
  • Net Weight: 82 lbs (37.19 kg)
  • Recommended Amplifier: M1000
Useful Documents
Specifications

General Specs

Product Weight (lbs.)82
ColorBlack
Depth (in.)16.75
Width (in.)13.5
Height (in.)13.5
Woofer Size10"
Speaker TypePowered Subwoofers
Maximum Power Handling (Watts)1000
Color Finish NameStudio Black
Speaker Size10
RMS Power Handling (Watts)1000
Subwoofer Size12"

Construction

Enclosure Type:Energy Multiplied Bandpass-tm
Woofer Composition:Aluminum Cone
Radiator Size:12"
Radiator Composition:Passive

Other

Sold As:Each

Specifications

Speaker Type:Subwoofer Speaker
