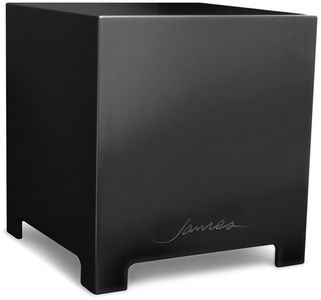

James Loudspeaker® EMB II Series 10" Studio Black Subwoofer

Product Overview

One of many available options in the EMB II Subwoofer series features a very contemporary cabinet design and a down-firing design that isn’t obtrusive. Built from solid aircraft grade aluminum and expertly finished to your color preference, the craftsmanship of this compact subwoofer exudes luxury and performance.

Internally, the EMB10DF utilizes our famous “Energy Multiplying Bandpass” technology to obtain high output and low distortion from a very compact enclosure. Inside, the cabinet features a specially designed 10” woofer and a pneumatically phase coupled passive radiator, both with aluminum cones and rubber surrounds. The EMB10DF subwoofer has been tuned to perform all the way down to an impressive 20Hz! Because it is a high power handling passive subwoofer, we recommend pairing it with our M1000 class D amplifier which provides 1000 watts of clean power and features a full DSP digital processor. You can power a total of 1 EMB10DF subwoofer with a single M1000 amplifier.

Specifications

Frequency Response: 20-150Hz +/-3dB

Nominal Impedance: 4 ohms

Sensitivity: 90dB 2.83V/1m

Recommended Power Range: 500 - 1000W

Woofer: (2) 10" Active/Passive

Enclosure: Aircraft Marine Grade Aluminum

Finishes : Satin Black or Gloss White

Height: 13 in (330.20 mm)

Width: 12 in (304.80 mm)

Depth: 12 in (304.80 mm)

Recommended Amplifier: M1000
