Crestron® Commercial Power Amplifier

High-output ENERGY STAR® qualified power amplifiers for all types of professional audio applications.

Crestron® AMP-series Commercial Power Amplifiers provide a perfect combination of high output and efficiency for all types of professional audio applications. 100% Crestron engineered and built, these amplifiers are ENERGY STAR® qualified to enable organizations to fulfill their green initiatives without compromising on audio performance. Advanced design features include a high-efficiency amp topology with active power factor corrected power supply, delivering a generous amount of power in a space-saving 1U rack-mountable chassis.

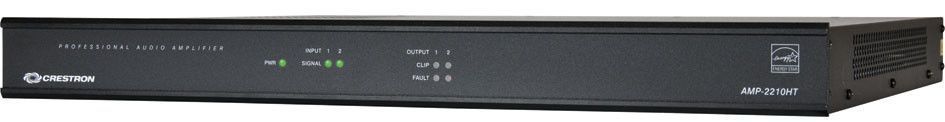

The AMP-2210HT provides two independent channels of amplification with configurable outputs to suit a range of system designs. Each channel is configurable via a simple selector switch to handle either low-Z or 70V constant-voltage speaker systems. Each channel is rated for 210W @ 70V or 4Ω, or 120W @ 8Ω. Additionally, the two channels may be bridged together to deliver a robust 420W @ 8Ω to a single load.

ENERGY STAR® Qualified

• Its ultra-efficient design allows the AMP-2210HT to meet demanding ENERGY STAR qualification requirements, affording a cost-reducing solution for everything from boardrooms and auditoriums to paging and background music systems. Auto power-down places the amplifier into a low-power standby state if no input signal is detected for 30 minutes. The amplifier quickly powers back on the instant an input signal is detected. In addition, each amp channel can be independently enabled or disabled via jumpers or remote contacts, reducing power consumption by shutting down individual channels when they are not needed. Whether switched remotely or through an AC power controller, the AMP-2210HT draws no added inrush current during power-up, reducing AC circuit requirements and potentially eliminating the need for extra power sequencing equipment.

Professional System Integration

• The AMP-2210HT includes professional balanced inputs with rear-panel �10dB input level adjustments to assure compatibility with a wide range of audio sources. Remote power control is enabled for each channel using external contact closures, switches, or control system relays. All input, output, and remote control connections are facilitated via detachable screw-terminal connectors to simplify installation and servicing.

Cool and Compact

• The AMP-2210HT features a durable, lightweight chassis that may be placed on a shelf, or rack-mounted using the rack ears provided. At only one rack space high and under 15 inches deep, it is ideal for installations requiring a lot of power in a limited space. Its efficient, cool-running design gives off substantially less heat than comparably rated amplifiers. Convection cooling means there are no noisy fans, allowing the AMP-2210HT to be installed in a boardroom lectern or credenza without affecting noise levels.

Rugged and Dependable

• All AMP-series amplifiers are designed for ultimate dependability in a wide range of commercial environments. Built-in over current and DC offset protection on each channel helps prevent damage to the amplifier and speakers due to external or internal faults. Discrete thermal protection is also provided on each channel and the power supply. Front panel indicators are provided for each channel to show signal presence, clipping, and fault conditions.

Key Features

• ENERGY STAR® qualified power amplifier
• Ultra-efficient space-saving design
• Low total cost of ownership
• High-output power, low noise, low distortion performance
• Each channel selectable for 4/8Ω or 70V operation
• Two channels each rated 210W@4Ω, 120W@8Ω, and 210W@70V[1]
• Bridgeable for 420W@8Ω
• Individual channel power control via jumper or remote contact
• Auto power-down after 30 minutes of no signal
• Instant auto power-on when an input signal is detected
• No inrush current during power-up
• Over current and DC offset protection per output
• Thermal protection on the power supply and each channel
• Front panel signal, clip, and fault indicators per channel
• Professional balanced inputs
• Detachable terminal block connectors
• Rear panel ±10dB input level controls
• Convection cooled - no noisy fans
• Single-space 1U rack mountable
• Under 15 inches deep
• Universal power supply with active power factor correction
