Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

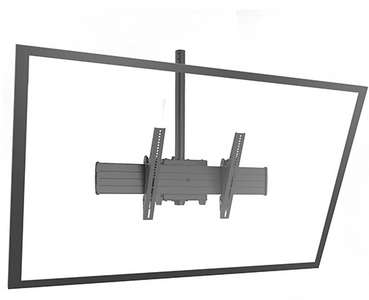

Chief® Professional AV Solutions Black Fusion™ X-Large Single Flat Panel Ceiling Mount

The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner.  For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.

Ceiling  Plate and extension column are required and must be ordered separately

Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.

Simple on/off connection for ease of installation and service.

Effortlessly adjust display using Centris fingertip tilt technology.

Tool free screen engagement with optional padlock security.

Mount swivels to any preferred viewing angle.

General Specs
Product Weight (lbs.)	26
Depth (in.)	7.9
Width (in.)	34.8
Height (in.)	16.8
TV Size's up to (in.)	90
Weight Capacity (lbs.)	250
Mounting Location	Ceiling
General
Certifications	UL Listed, TAA Compliant
Color	Black
Mounting Pattern Compatibility (Universal Versions)	200 x 100 mm - 800 x 400 mm
Number Of Monitors	1
Post-Installation Leveling Roll	Yes
Shipping Weight	26 lbs (11.79 kg)
Tilt	+ 5° , - 20°
Typical Screen Sizes	55 - 100"
Weight Capacity	250 lbs (113.4 kg)
Orientation	Landscape
